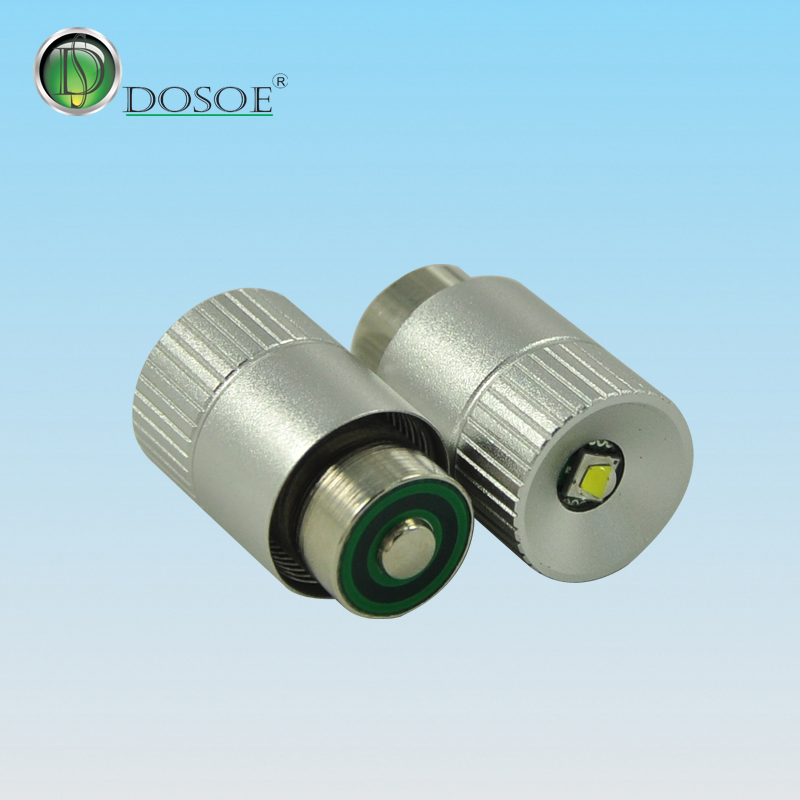

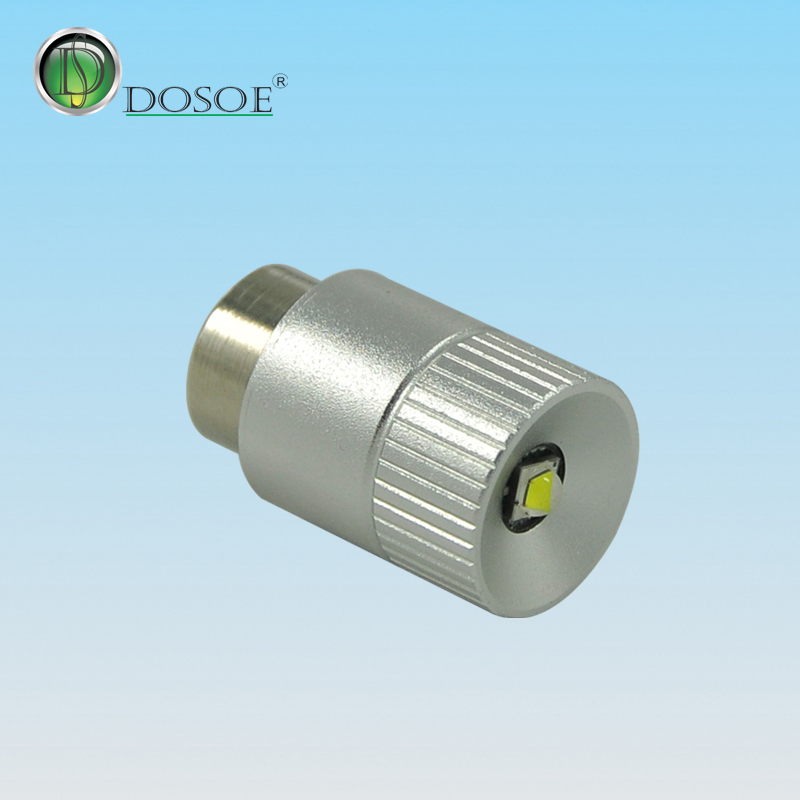

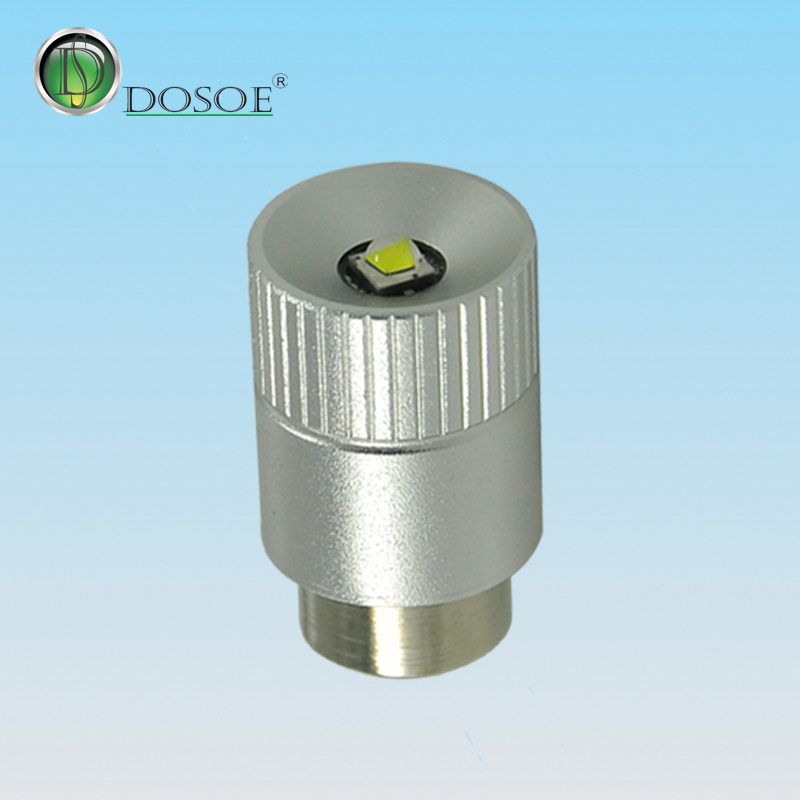

The LED Upgrade Bulb Fits for Mag-lite C & D Torches 1~4.5V / 3W / Maglite base

The LED Upgrade Bulb Fits for Mag-lite C & D Torches 1~4.5V / 3W / Maglite base

Browse times:3638 Categoties3W CategotiesFor C cell flashlight CategotiesFor D cell flashlight CategotiesLED upgrade bulbs - For Maglite CategotiesMaglite Accessories

Parameters:

Model Number DS1045MG-3WPG
Input Voltage 1V-4.5V DC (1.5V x 2 Cells)
Output Power 3 W
Item MG - LED Upgrade Bulbs
Light Source XPG LED
LED Brand CREE
Base Type MG Standard
* Lamp Luminous Flux 260 - 280 LM
Lamp Luminous Efficiency 80 LM/W
CRI (Ra>) 75
Color Temperature Cool white, Warm white or Pure white
LED Color White, Red, Blue, Green
Lamp Body Material Copper and Aluminum
Working Temperature -30℃ - +60℃
Working Lifetime 50, 000 Hours
Feature Energy-saving, Friendly environment, Extend running time, Shock resistant, Overheat protection
Certification CE, RoHS
Place of Origin China

“*” means the parameter which is affected by the environment temperature and the heat dissipation performance is unsure. When the temperature is high, the overheat protection circuit will reduce the power and the temperature to prevent the bulb from overheat damages. So the brightness would not be the same under different temperatures. When the temperature of the bulb is high, the brightness will be reduced automatically.



Applications:

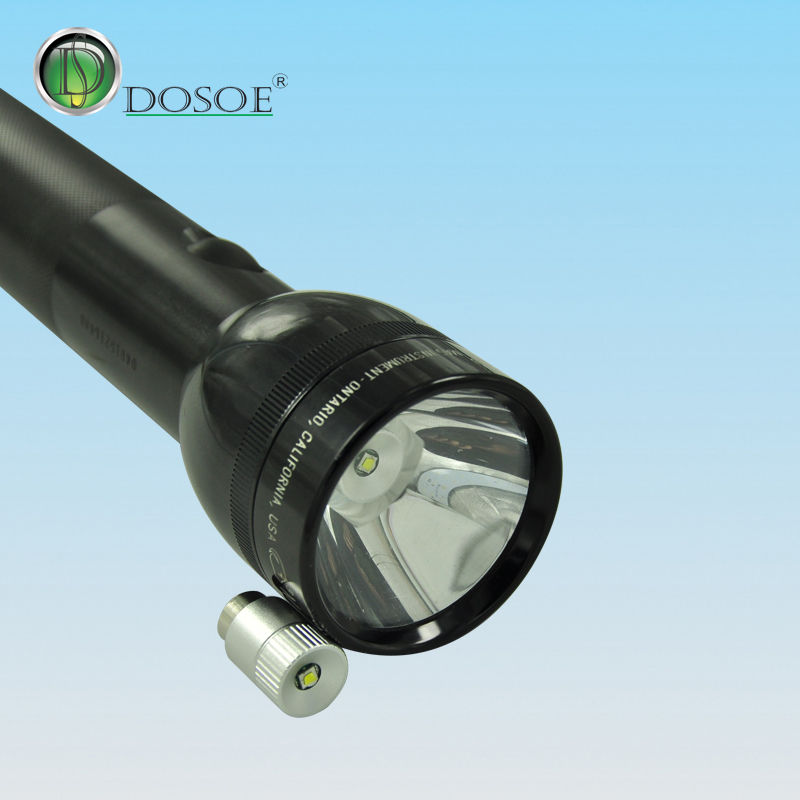

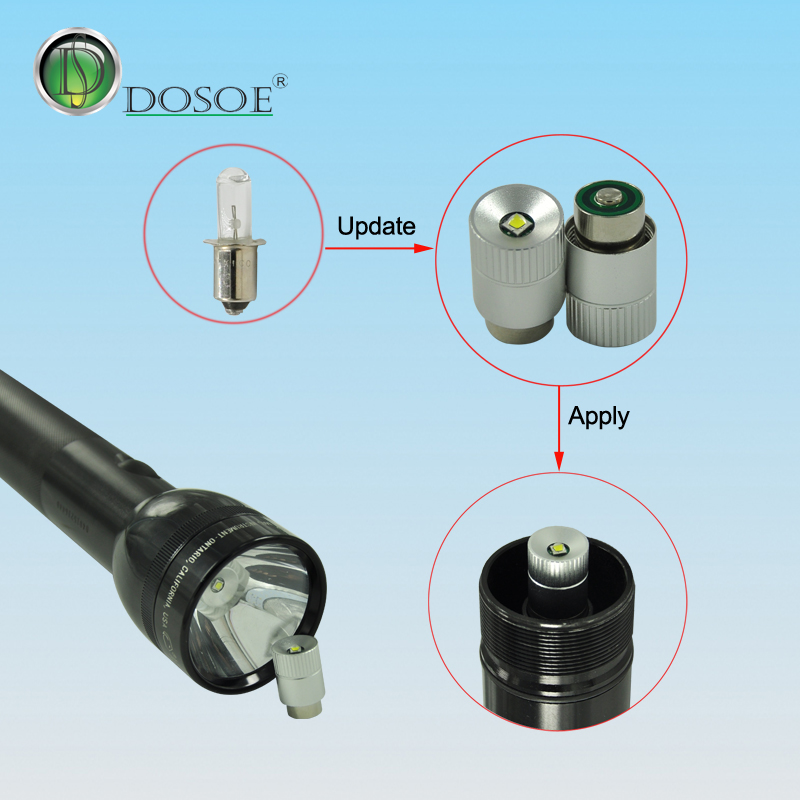

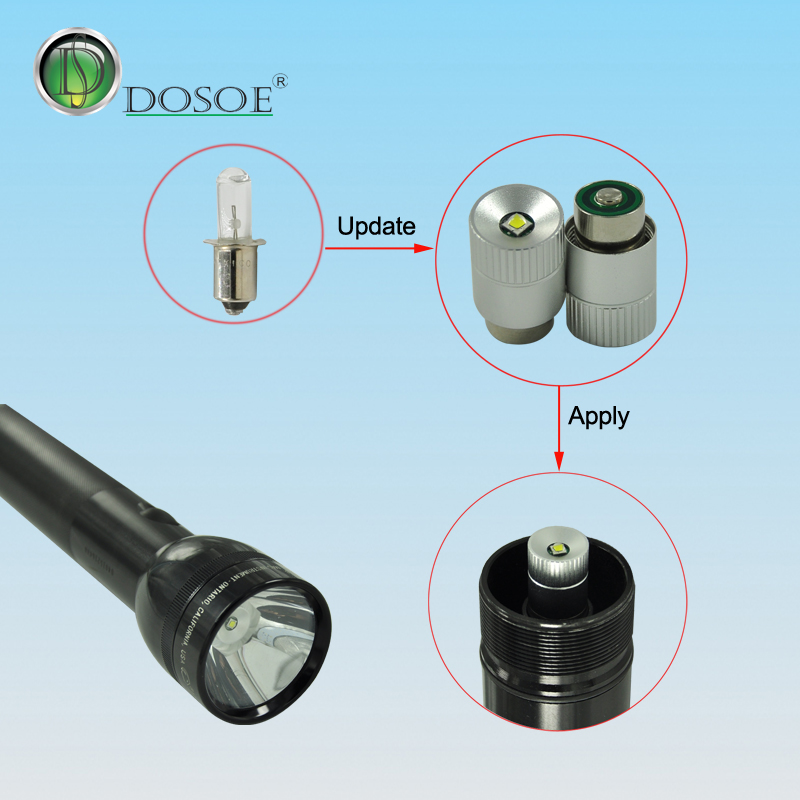

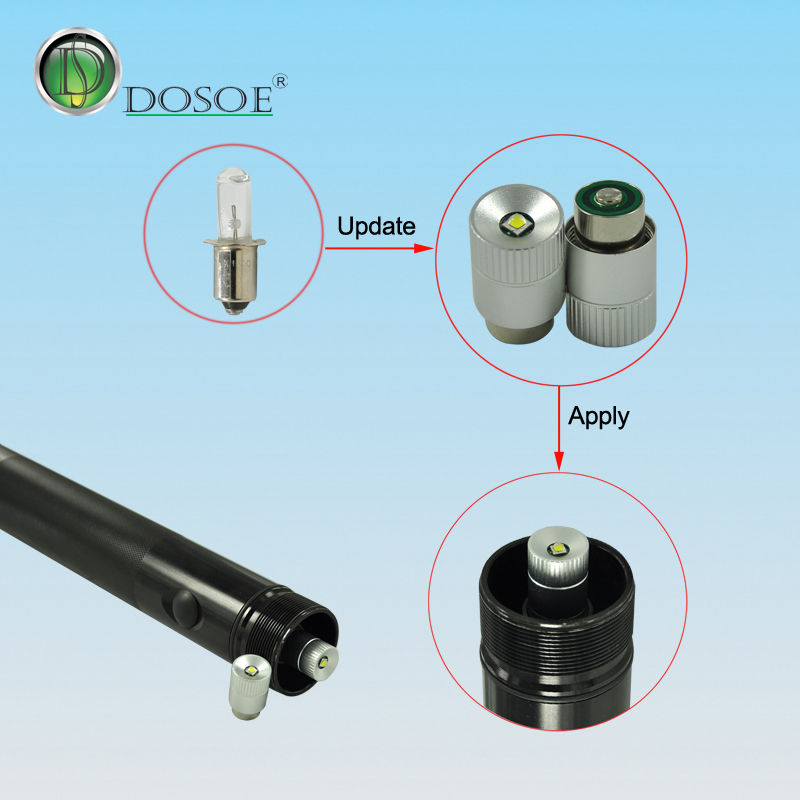

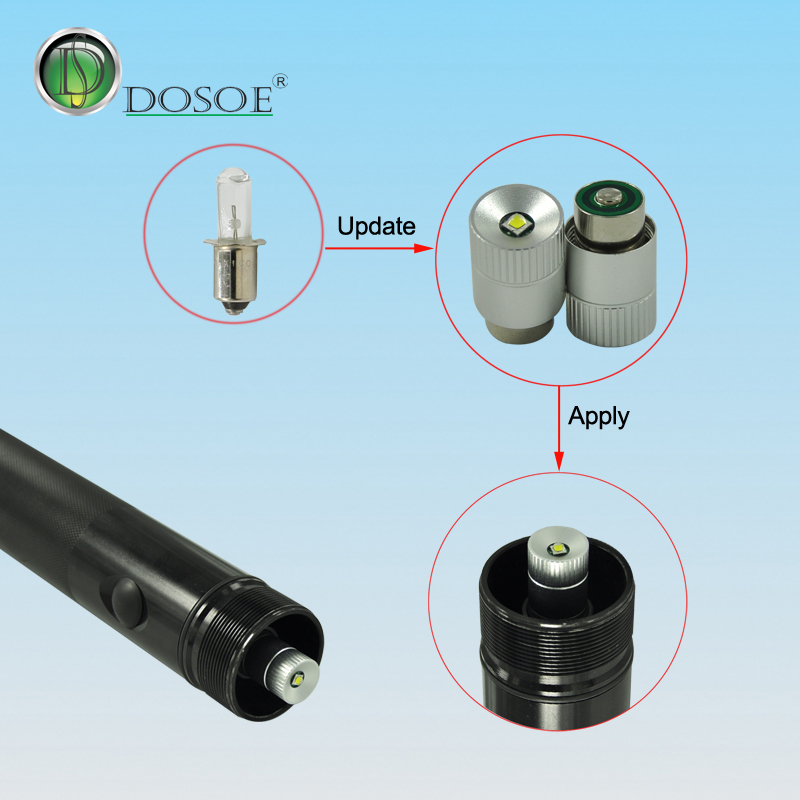

MG-Lite flashlights are sold well all over the world with elegant appearance and durable features. Dosoe employed the latest LED technologies to improve the MG-Lite flashlights with C or D batteries perfectly, and replaced the original Krypton Xenon or Halogen bulbs. No matter how many batteries your flashlights work with, the latest LED upgrade bulbs which Dosoe

introducing can perfectly match with them, and make you enjoy the energy saving and convenience brought by LED technology.



Adaptations:

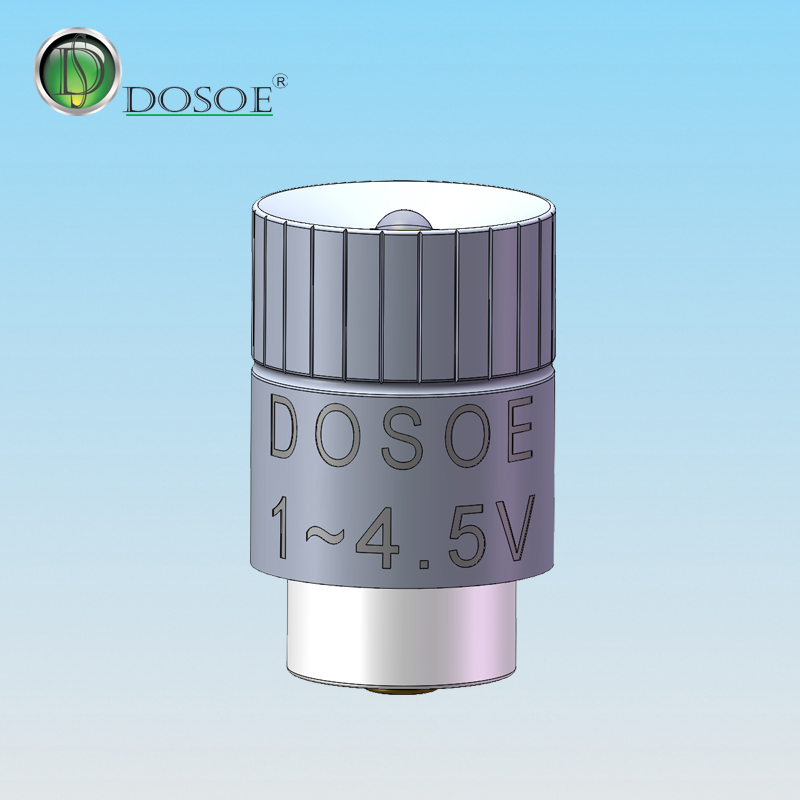

1.DS1045MG-3WPG, apply to 1-4.5V flashlights with C&D batteries, optimally operate in the Maglite with 2 cells of batteries.

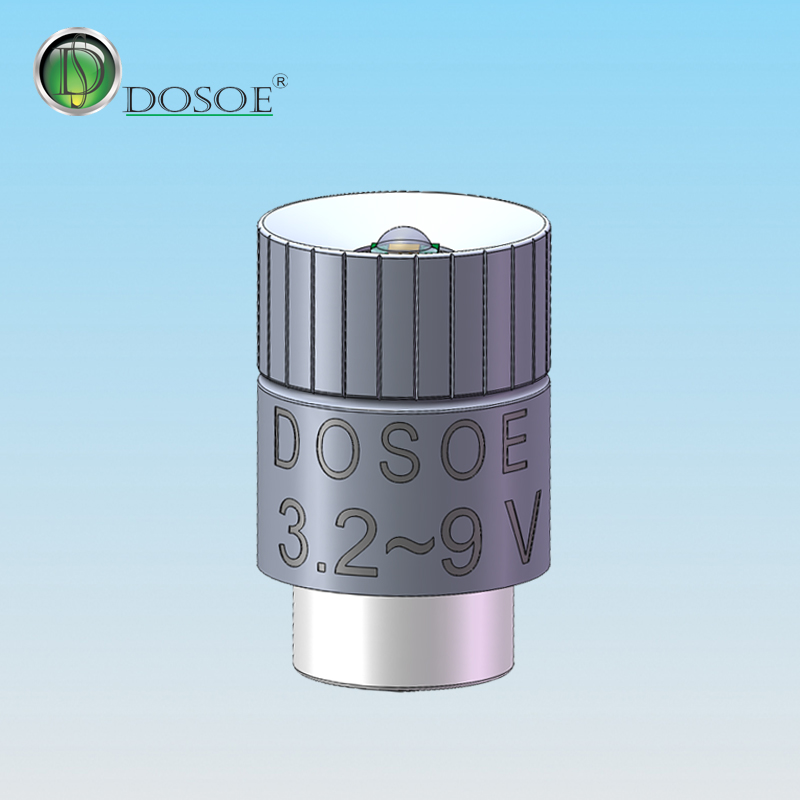

2.DS3209MG-3WPG, apply to 3.2-9V flashlights with C&D batteries, optimally operate in the Maglite with 3-6 cells of batteries.



Features

Compatibility

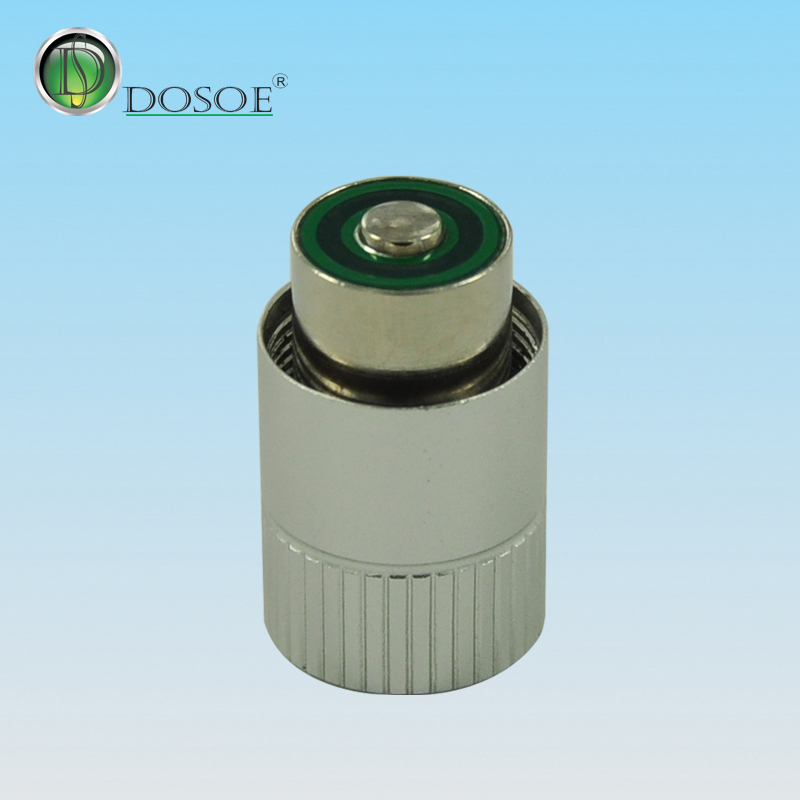

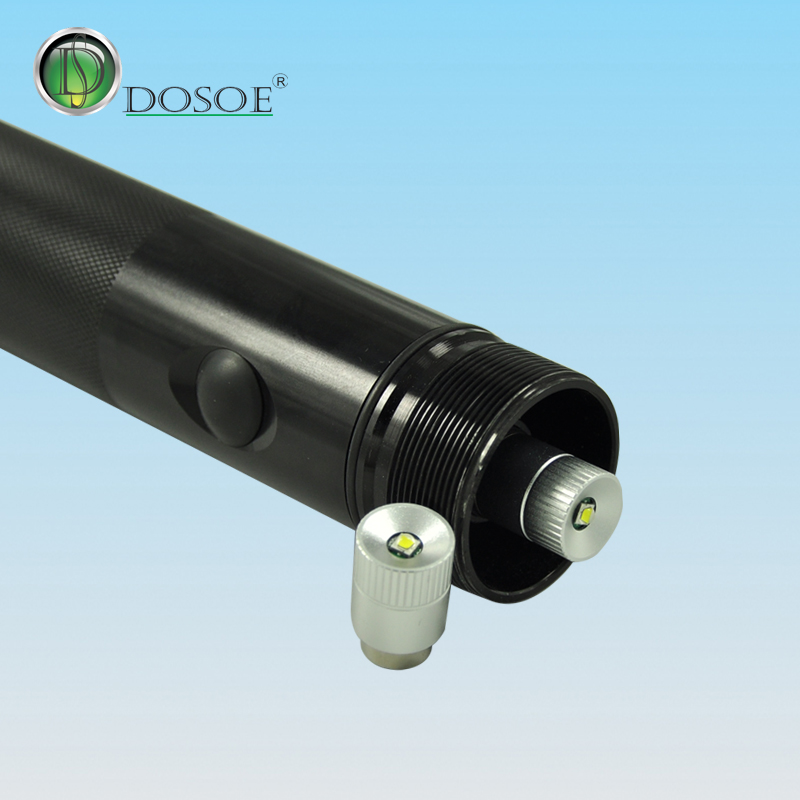

The design of this bulb avoided the effect of the different sizes of retaining collars on Maglite flashlights. Because the bulbs do not need to use the original retaining collar of the flashlights.

Extend Running Time

The bulbs has been inserted in wide voltage LED constant-current circuit, and can be operated in wide voltage range. Their brightness is stable within the working voltage. The inserted LED constant-current circuit can unreservedly exhaust all the electricity in the batteries. It can extend the lifespan of the batteries, and achieved the purpose of energy saving.

Overheat Protection

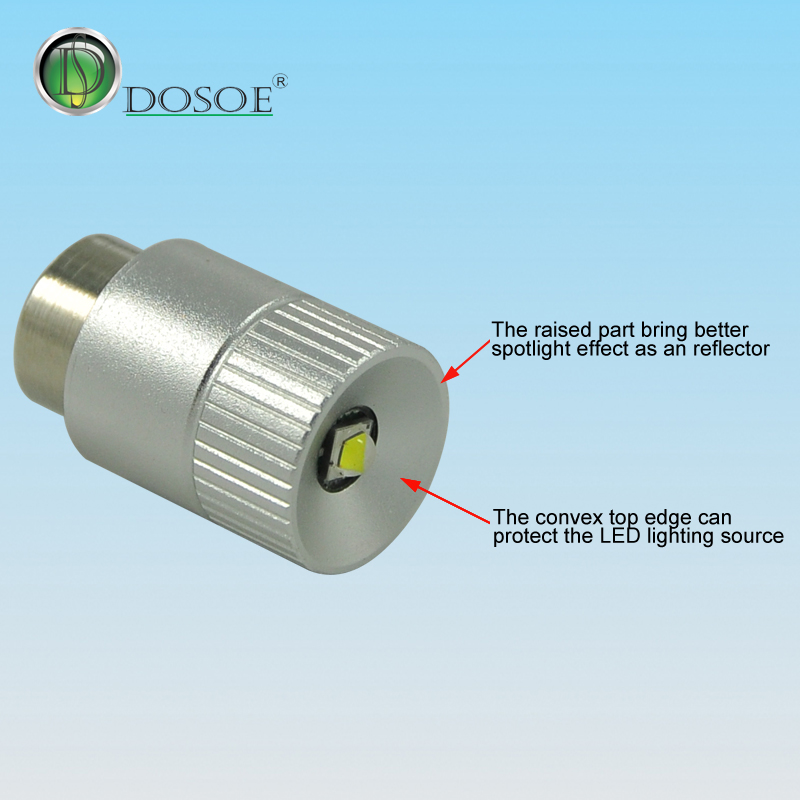

LED application technology is to solve the stability of the power supply and heat dissipation. Affected by the high temperature, the service life of LED will be shortened rapidly, even products can be damaged. This bulb increased the heat dissipation of the metal as much as possible, and was equipped with overheat protection circuit in its small space. It can control the bulb temperature in a reasonable range to protect the operating stability of it. Thereby reach the highest brightness.

Reverse Polarity Protection

The upgrade bulb does not work and not burned out even if the power supply is connected reversely. In this situation, users just need to change the direction of the positive and negative pole of the batteries. Then the bulb can return to work.

Shock Resistant

Adopted the latest LED technology. LED is a kind of solid-state lighting source. The shell of the bulbs is made of metal materials. The inside structure is solid and with good seismic performance.
