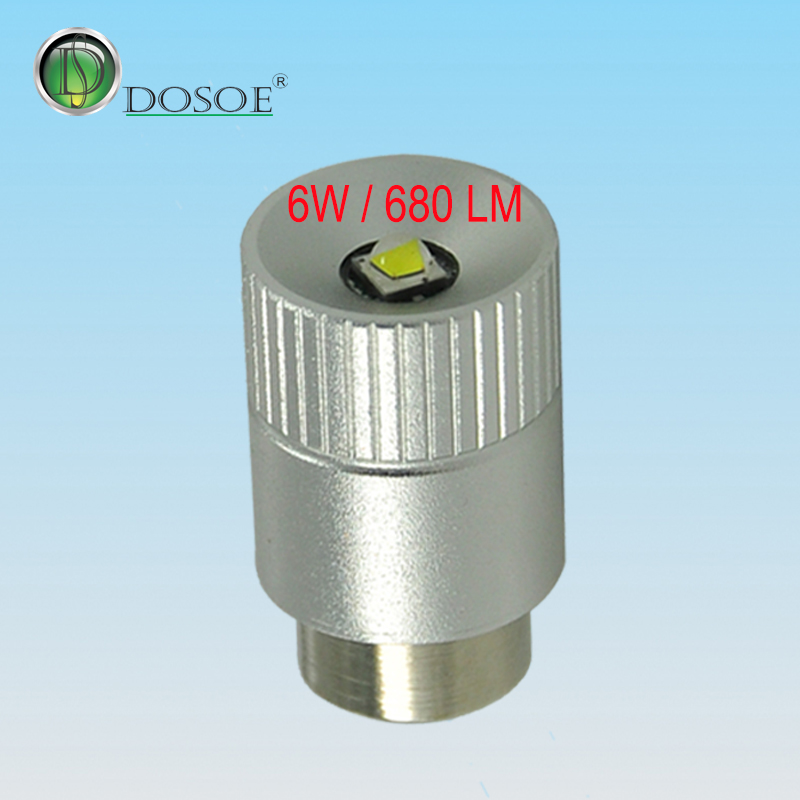

Upgrade to 6W 680LM LED Bulbs

Publish time:2026/04/02 Browse times:171 Categoties5W Categoties6V Categoties9V CategotiesLED upgrade bulbs - For Maglite CategotiesMaglite Accessories CategotiesSpecial for Maglite

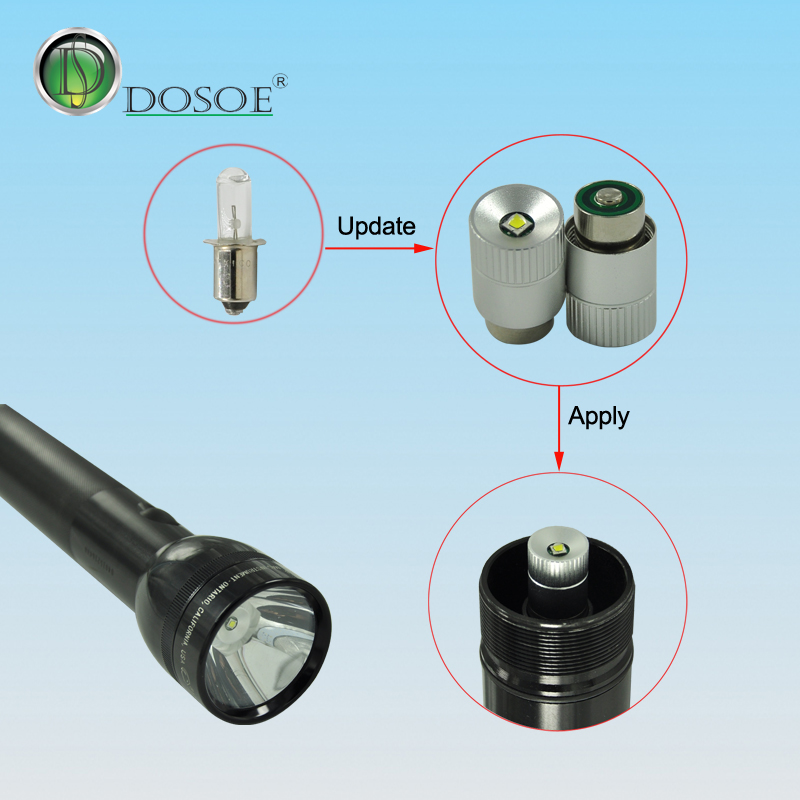

Perfect upgrade replacement for C&D Mag-lite classic flashlights

Model: DS-2709MG-6W-25

Apply to 2.7V–9.0V, flashlights with C&D batteries, optimally operate in Maglite flashlights with 3–6 cells.

DS-2709MGT3-6W-25

Apply to 2.7V–9.0V, flashlights with C&D batteries, with 3-level dimming function.

The previous 3W model had insufficient brightness and failed to meet customer requirements. This upgraded version reaches 6W power, 680 LM brightness, and up to 270 hours of running time.

Power Consumption	6 W
Output lumens	680 LM
Operating Voltage	2.7 - 9.0 V （3 -6 cells）
Runtime （Alkaline battery）	270 hours（4 Cells D Battery）
Applications	Fits for C & D Classic Maglite

Compatibility

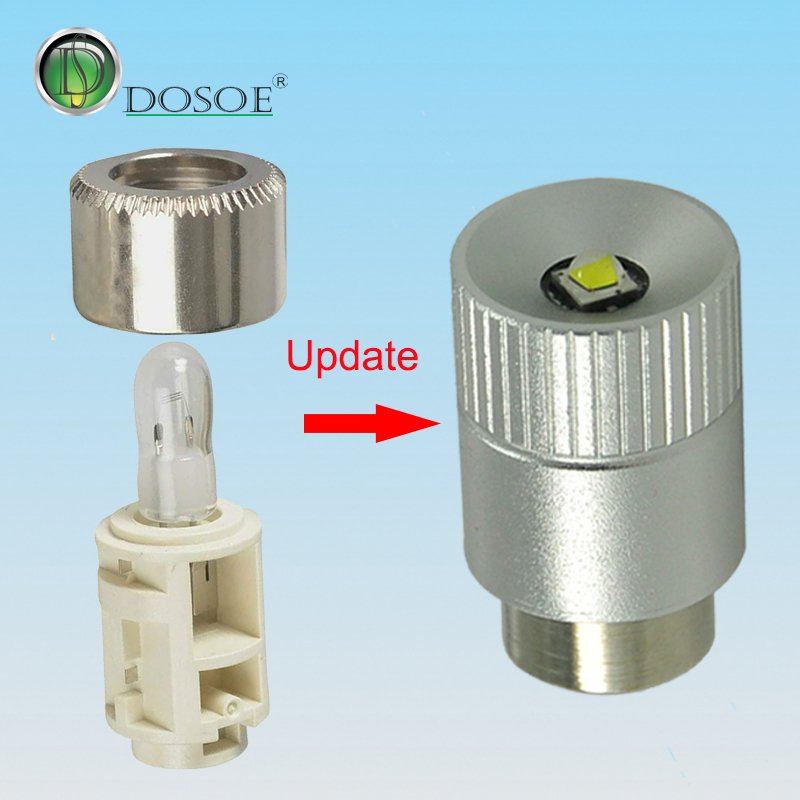

The bulb design avoids the effect of different sizes of retaining collars on Maglite flashlights. The original retaining collar of the flashlight is not required, providing better compatibility and easier installation.

Extended Running Time

The bulb is equipped with a wide-voltage LED constant-current circuit, enabling stable operation over a wide voltage range with consistent brightness. The constant-current circuit fully utilizes battery power, extends battery life, and achieves energy saving.

Overheat Protection

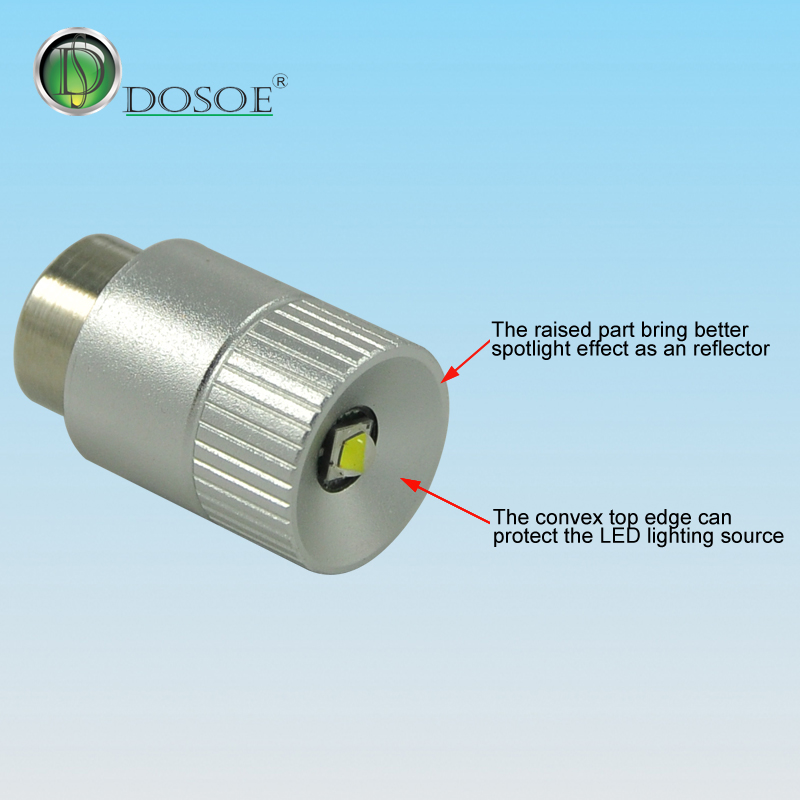

LED lifespan can be drastically shortened or damaged by high temperatures. This bulb greatly enhances metal heat dissipation and integrates an overheat protection circuit in a compact space, keeping the bulb temperature within a reasonable range to ensure stable operation and maximum brightness.

Reverse Polarity Protection

The bulb will not work or burn out even if the power is connected reversely. Simply correct the battery polarity to resume normal operation.

Shock Resistant:Adopts the latest solid-state LED technology. The bulb shell is made of metal with a solid internal structure, delivering excellent shock resistance.
